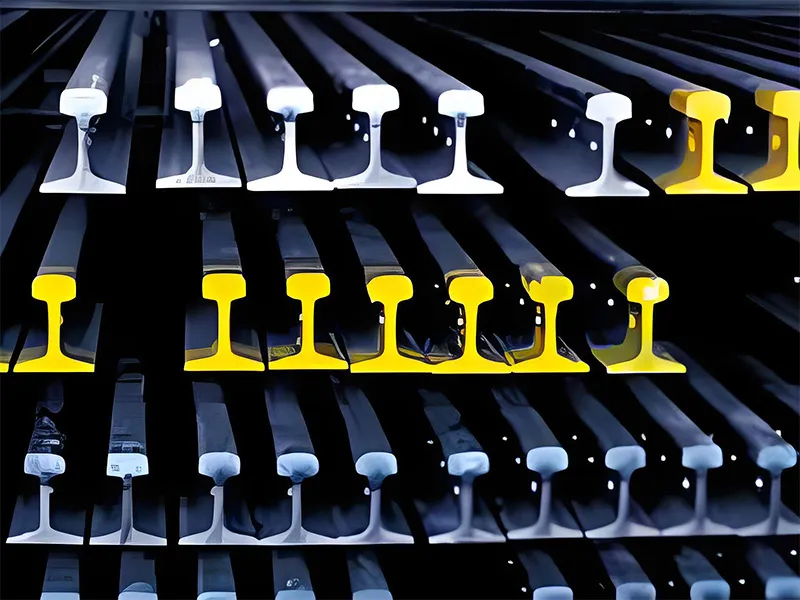

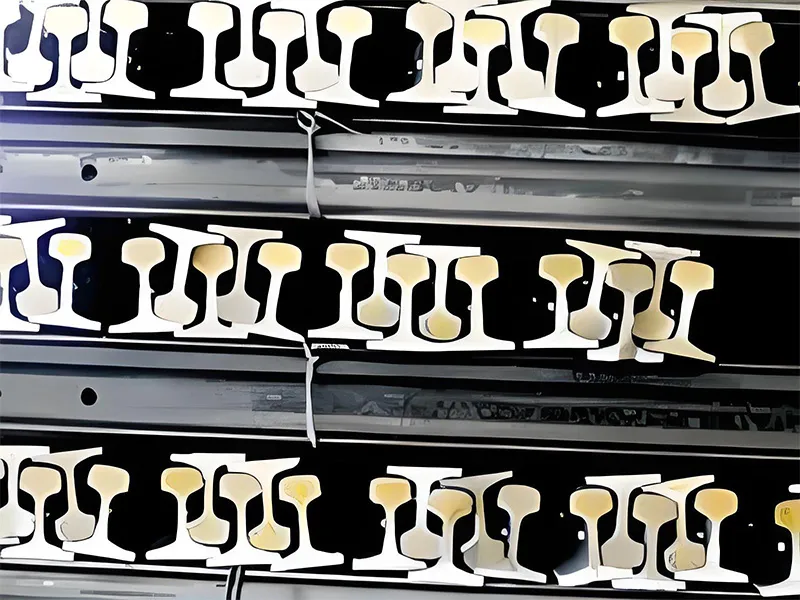

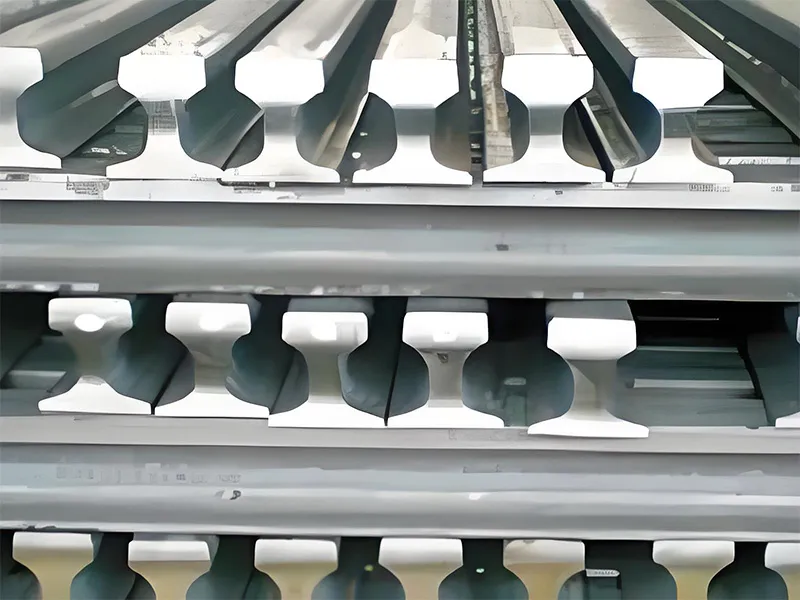

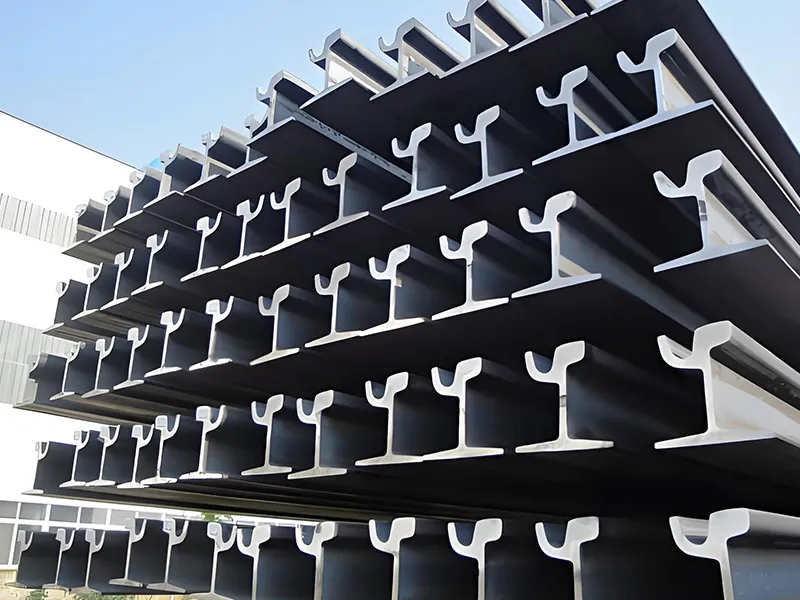

Steel Rail

Home » Our Products »Rail Fastener and Steel Rail »Steel Rail

1. Chinese Standard Light Rail

Standard GB11264-89: GB6KG, GB9KG, GB12KG, GB15KG, GB22KG, GB30KG
Standard YB222-63: 8KG, 18KG, 24KG

Specifications
Standard: GB11264-89
Size Dimension(mm) Weight
(kg/m) 		Material Length(m)
Head(mm) Height(mm) Bottom(mm) Web(mm)
GB6KG 25.4 50.8 50.8 4.76 5.98 Q235B 6-12
GB9KG 32.1 63.5 63.5 5.9 8.94 Q235B 6-12
GB12KG 38.1 69.85 69.85 7.54 12.2 Q235B/55Q 6-12
GB15KG 42.86 79.37 79.37 8.33 15.2 Q235B/55Q 6-12
GB22KG 50.3 93.66 93.66 10.72 23.3 Q235B/55Q 6-12
GB30KG 60.33 107.95 107.95 12.3 30.1 Q235B/55Q 6-12
Standard: YB222-63
8KG 25 65 54 7 8.42 Q235B 6-12
18KG 40 90 80 10 18.06 Q235B/55Q 6-12
24KG 51 107 92 10.9 24.46 Q235B/55Q 6-12

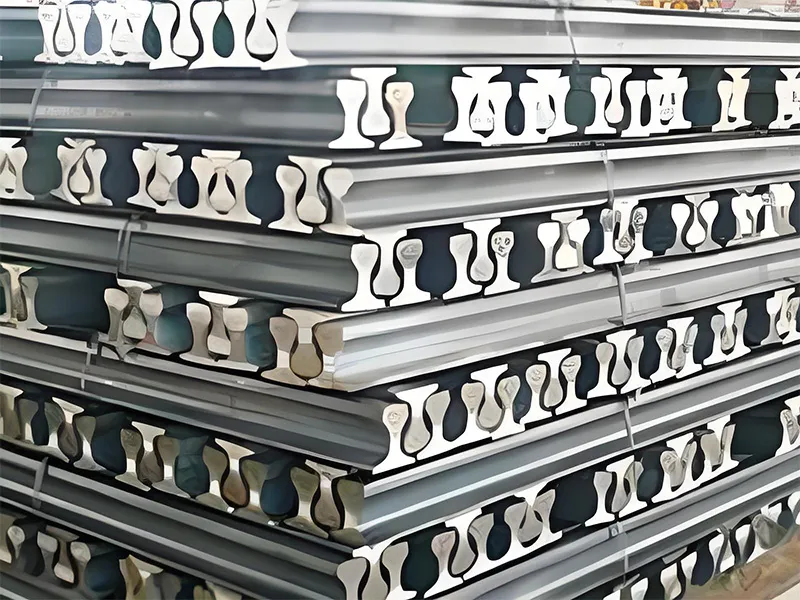

2. Chinese Standard Heavy Rail

Standard GB2585-2007: P38KG, P43KG, P50KG, P60KG

Specifications
Standard: GB2585-2007
Size Dimension(mm) Weight
(kg/m) 		Material Length (m)
Head(mm) Height(mm) Bottom(mm) Web(mm)
P38KG 68 134 114 13 38.733 U71Mn 12.5-25
P43KG 70 140 114 14.5 44.653 U71Mn 12.5-25
P50KG 70 152 132 15.5 51.514 U71Mn 12.5-25
P60KG 73 170 150 16.5 61.64 U71Mn 12.5-25

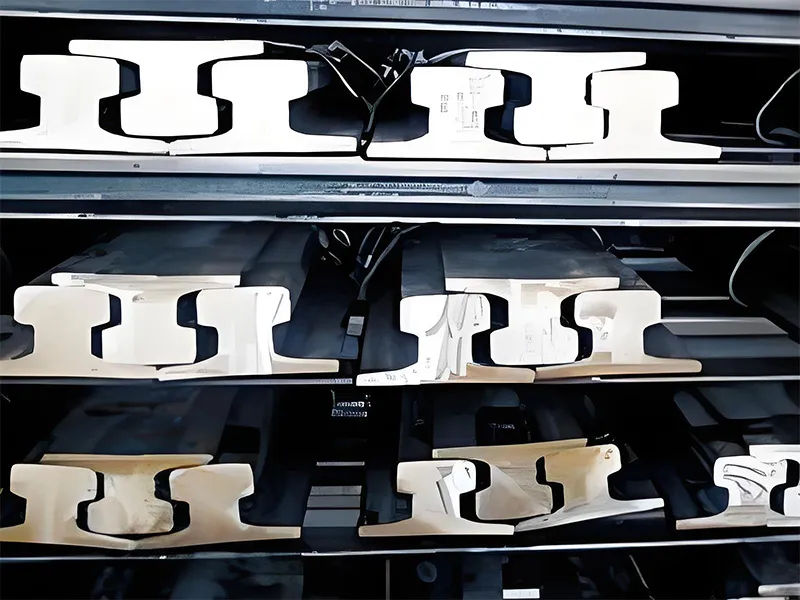

3. Chinese Standard Crane Rail

Standard YB/T5055-93: QU70, QU80, QU100, QU120

Specifications
Standard: YB/T5055-93
Size Dimension(mm) Weight
(kg/m) 		Material Length (m)
Head(mm) Height(mm) Bottom(mm) Web(mm)
QU 70 70 120 120 28 52.8 U71Mn 12
QU 80 80 130 130 32 63.69 U71Mn 12
QU 100 100 150 150 38 88.96 U71Mn 12
QU 120 120 170 170 44 118.1 U71Mn 12

4. American Standard Steel Rail

Standard ASTMA1, AREMA: ASCE25, ASCE30, ASCE40, ASCE60, ASCE75, ASCE85, 90RA, 115RE, 136RE, 175LBS

Specifications
Standard: ASTMA1, AREMA
Size Dimension(mm) Weight
(kg/m) 		Material Length (m)
Head(mm) Height(mm) Bottom(mm) Web(mm)
ASCE 25 38.1 69.85 69.85 7.54 12.4 700 6-12
ASCE 30 42.86 79.38 79.38 8.33 14.88 700 6-12
ASCE 40 47.62 88.9 88.9 9.92 19.84 700 6-12
ASCE 60 60.32 107.95 107.95 12.3 29.76 700 6-12
ASCE 75 62.71 122.24 122.24 13.49 37.2 900A/1100 12-25
ASCE 85 65.09 131.76 131.76 14.29 42.17 900A/1100 12-25
90RA 65.09 142.88 130.18 14.29 44.65 900A/1100 12-25
115RE 69.06 168.28 139.7 15.88 56.9 900A/1100 12-25
136RE 74.61 185.74 152.4 17.46 67.41 900A/1100 12-25
175LBs 109.86 152.4 152.4 38.1 86.8 900A/1100 12-25

5. BS Standard Steel Rail

Standard BS11: 1985: 50O, 60A, 75A, 75R, 80A, 80R, 90A, 100A, 113A

Specifications
Standard: BS11: 1985
Size Dimension(mm) Weight
(kg/m) 		Material Length (m)
Head(mm) Height(mm) Bottom(mm) Web(mm)
50 O 52.39 100.01 100.01 10.32 24.833 700 6-18
60 A 57.15 114.3 109.54 11.11 30.618 900A 6-18
75 A 61.91 128.59 114.3 12.7 37.455 900A 8-25
75 R 61.91 128.59 122.24 13.1 37.041 900A 8-25
80 A 63.5 133.35 117.47 13.1 39.761 900A 8-25
80 R 63.5 133.35 127 13.49 39.674 900A 8-25
90 A 66.67 142.88 127 13.89 45.099 900A 8-25
100 A 69.85 152.4 133.35 15.08 50.182 900A 8-25
113 A 69.85 158.75 139.7 20 56.398 900A 8-25

6. UIC860 Standard Steel Rail

Standard UIC860: UIC50, UIC54, UIC60

Specifications
Standard: UIC860
Size Dimension(mm) Weight
(kg/m) 		Material Length (m)
Head(mm) Height(mm) Bottom(mm) Web(mm)
UIC50 70 152 125 15 50.46 900A/1100 12-25
UIC54 70 159 140 16 54.43 900A/1100 12-25
UIC60 74.3 172 150 16.5 60.21 900A/1100 12-25

7. JIS Standard Steel Rail

Standard: JIS

Specifications
Standard: JIS E1103-91/JISE 1101-93
Size Dimension(mm) Weight
(kg/m) 		Material Length (m)
Head(mm) Height(mm) Bottom(mm) Web(mm)
JIS 15KG 42.86 79.37 79.37 8.33 15.2 JIS E standard 9-10
JIS 22KG 50.8 93.66 93.66 10.72 22.3 9-10
JIS 30KG 60.33 107.95 107.95 12.3 30.1 9-10
JIS 37Ａ 62.71 122.24 122.24 13.49 37.2 10-25
JIS 50N 65 153 127 15 50.4 10-25
CR 73 100 135 140 32 73.3 10-12
CR 100 120 150 155 39 100.2 10-12

8. EN Standard Steel Rail

Standard EN 13674-1-2003: 49E1, 49E2, 50E1, 50E2, 50E4, 50E5, 50E6, 54E1, 54E2, 54E3, 55E1, 60E1

Specifications
Standard: EN 13674-1-2003
Size Dimension(mm) Weight
(kg/m) 		Material Length (m)
Head(mm) Height(mm) Bottom(mm) Web(mm)
49 E1 67 149 125 14 49.39 R260/R350HT 12-25
49 E2 67 148 125 14 49.1 R260/R350HT 12-25
50 E1 65 153 134 15.5 50.37 R260/R350HT 12-25
50 E2 72 151 140 15 49.97 R260/R350HT 12-25
50 E4 70 152 125 15 50.46 R260/R350HT 12-25
50 E5 67 148 135 14 49.9 R260/R350HT 12-25
50 E6 65 153 140 15.5 50.9 R260/R350HT 12-25
54 E1 70 159 140 16 54.77 R260/R350HT 12-25
54 E2 67.01 161 125 16 53.82 R260/R350HT 12-25
54 E3 67 154 125 16 54.57 R260/R350HT 12-25
55 E1 62 155 134 19 56.03 R260/R350HT 12-25
60 E1 72 172 150 16.5 60.21 R260/R350HT 12-25

9. IN Standard Steel Rail

Standard EN 13674-1-2003: A55, A65, A75, A100, A120

Specifications
Standard: DIN536
Size Dimension(mm) Weight
(kg/m) 		Material Length (m)
Head(mm) Height(mm) Bottom(mm) Web(mm)
A55 55 65 150 31 31.8 900A 10-12
A65 65 75 175 38 43.1 900A 10-12
A75 75 85 200 45 56.2 900A 10-12
A100 100 95 200 60 74.3 900A 10-12
A120 120 105 220 72 100 900A 10-12

10. Grooved Rail

Standard BS EN 14811: 2006: 59R1 59R2 60R1 60R2

Specifications
Size Height (mm) Bottom (mm) Head A (mm) Head B(mm) Channel A (mm) Channel B (mm) Web (mm) Weight (kg/m)
59R1 180 180 113 56 42 15 12 58.97
59R2 180 180 113 55.83 42.52 14.65 12 58.14
60R1 180 180 113 56 36 21 12 60.59
60R2 180 180 113 55.83 36.34 20.83 12 59.75
